• Width available 43” and 52” |
| |

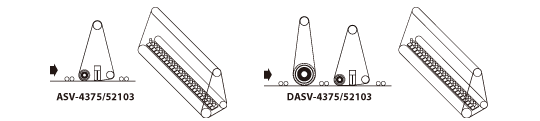

• Number of head 1 and 2 |
| |
• Vacuum bed with blower for thin veneer sanding. |
| |
• Air paten and electronic segmented pad offers you the best
choice for veneer sanding. |
| |
|
|
| |
‧43” single and two head
| Model |
|
ASV-4375 |
DASV-4375 |
| Maximum working width |
in |
42 |
42 |
| mm |
1070 |
1070 |
| Maximum working thickness |
in |
5 |
5 |
| mm |
127 |
127 |
| Sanding belt dimension (WxL) |
in |
43X75 |
43X75 |
| mm |
1092X1905 |
1092X1905 |
Dust outlet
|
in |
8”X1, 6”X1 |
8”X2, 6”X1 |
| mm |
200X1, 150X1 |
200X2, 150X1 |
| Main motor |
HP |
25 |
25, 20 |
| Feed motor |
HP |
2 |
2 |
| Table lifting motor |
HP |
1/4 |
1/4 |
| Vacuum blower |
HP |
15 |
15 |
| Variable feed speed |
m/min |
6-13 |
6-13 |
| Working pressure |
kg/cm² |
5 |
6 |
| Exhaust volume required |
m3/hr |
4416 |
7242 |
| Net weight |
lbs |
4850 |
6503 |
| kgs |
2200 |
2900 |
| Gross weight |
lbs |
5511 |
7165 |
| kgs |
2500 |
3250 |
| Machine size (LxWxH) |
in |
74x62x93 |
89x62x93 |
| mm |
1866x1570x2355 |
2256x1570x2355 |
| Packing size |
in |
80x67x91 |
96x67x91 |
| mm |
2030x1700x2300 |
2420X1700X2300 |
| |
‧52” single and two head
| Model |
|
ASV-52103 |
DASV-52103 |
| Maximum working width |
in |
51 |
51 |
| mm |
1295 |
1295 |
| Maximum working thickness |
in |
5 |
5 |
| mm |
127 |
127 |
| Sanding belt dimension (WxL) |
in |
52X103 |
52X103 |
| mm |
1321X2616 |
1321X2616 |
Dust outlet
|
in |
8”X1, 6”X1 |
8”X2, 6”X1 |
| mm |
200X1, 150X1 |
200X1, 150X1 |
| Main motor |
HP |
30 |
30, 25 |
| Feed motor |
HP |
2 |
2 |
| Table lifting motor |
HP |
1/4 |
1/4 |
| Vacuum blower |
HP |
15 |
25 |
| Variable feed speed |
m/min |
6-13 |
6-13 |
| Working pressure |
kg/cm2 |
6 |
6 |
| Exhaust volume required |
m3/hr |
4416 |
7242 |
| Net weight |
lbs |
6172 |
7716 |
| kgs |
2800 |
3500 |
| Gross weight |
lbs |
6834 |
8377 |
| kgs |
3100 |
3800 |
| Machine size (LxWxH) |
in |
72x79x93 |
72x95x93 |
| mm |
1820x2000x2360 |
1820x2400x2360 |
| Packing size |
in |
82x79x91 |
82x91x91 |
| mm |
2060x2000x2300 |
2060x2300x2300 |
| • specifications and design characteristics are subject to change without prior notice. |
|
|
|
|
|
|
|
 |
|
|
|
|
| |
|
|
 |
 |
|
|
|
 |
|
 |
|
|
