• Width available 25”. |
| |
|
• Number of heads 1 and 2 |
| |
|
• 115mm dia drum supplied in different hardness from 35 duro to 65 duro. |
| |
|
• Dia brush head is available in Scotch Brite brush and Stainless
steel wire brush. |
| |
|
• For the company in the beginning stage or
workshop
requires light duty sanding. |
| |
|
 |
|

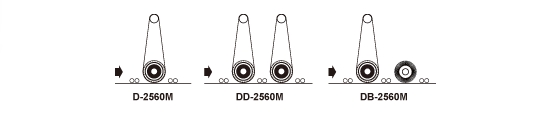

| Model |
|
D-2560M |
DD-2560M |
DB-2560M |
| Maximum working width |
in |
24 |
24 |
24 |
| mm |
610 |
610 |
610 |
| Maximum working thickness |
in |
5 |
5 |
5 |
| mm |
127 |
127 |
127 |
| Sanding belt dimension (WxL) |
in |
25x60 |
25x60 |
25x60 |
| mm |
635x1524 |
635x1524 |
635x1524 |
Dust outlet |
in |
4x1 |
4x2 |
4x2 |
| mm |
100x1 |
100x2 |
100x2 |
| Main motor |
HP |
10 |
10, 7-1/2 |
10, 7-1/2 |
| Feed motor |
HP |
1 |
1 |
1 |
| Table lifting motor |
HP |
1/4 |
1/4 |
1/4 |
| Variable feed speed |
m/min |
5-15 |
5-15 |
5-15 |
| Working pressure |
kg/cm² |
5 |
6 |
6 |
| Exhaust volume required |
m3/hr |
708 |
1416 |
1416 |
| Net weight |
lbs |
1364 |
2420 |
2420 |
| kgs |
620 |
1100 |
1100 |
| Gross weight |
lbs |
1694 |
2838 |
2838 |
| kgs |
770 |
1290 |
1290 |
| Machine size (LxWxH) |
in |
42x54x71 |
42x64x71 |
42x64x71 |
| mm |
1046x1362x1783 |
1046x1620x1783 |
1046x1620x1783 |
| Packing size |
in |
50x50x78 |
50x59x78 |
50x59x78 |
| mm |
1270x1280x1983 |
1270x1500x1983 |
1270x1500x1983 |
| |
|
