• Width available 37”, 43”, 52” and 62”
    • Number of head 1, 2 and 3




 • 150mm for 37" and 43" wide machines; 200mm for 52" and 62" wide machines.
    • Dia brush head is available in Scotch Brite brush and Stainless
    steel wire brush.
    • Digital thickness set up as standard equipment.

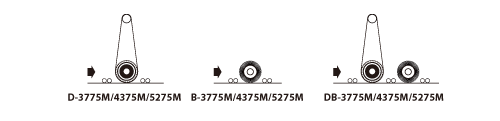

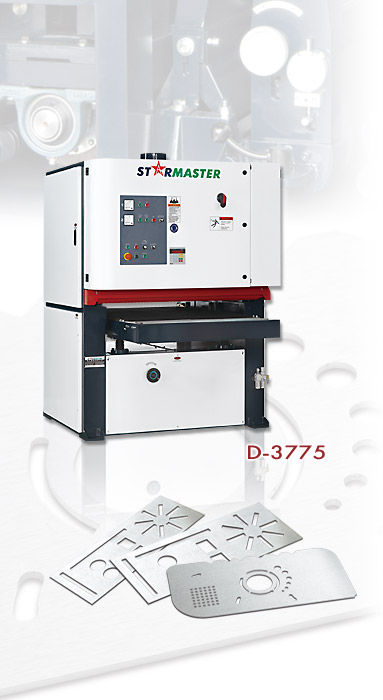

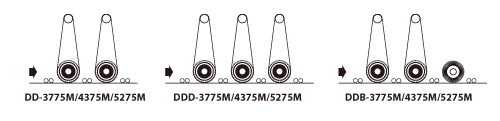

Model   D-3775M DD-3775M DDD-3775M
B-3775M DB-3775M DDB-3775M
Max working width in 37 37 37
mm 915 915 915
Maximum working thickness in 5 5 5
mm 127 127 127
Sanding belt dimension (WxL) in 37x75 37x75 37x75
mm 940x1905 940x1905 940x1905

Dust outlet

 in 6 6 6
mm 150 150 150
Main motor HP 20 20, 15 25, 20, 15
Feed motor HP 1 2 2
Table lifting motor HP 1/4 1/4 1/4
Variable feed speed m/min 5-15 5-15 5-15
Working pressure kg/cm2 6 6 6
Exhaust volume required m3/hr 1590 3180 4770
Net weight lbs 3960 5060 6380
kgs 1800 2300 2900
Gross weight lbs 4510 5720 7150
kgs 2050 2600 3250
Machine size (LxWxH) in 56x59x78 56x78x78 56x89x78
mm 1410x1496x1960 1410x1968x1960 1410x2259x1960
Packing size in 62x50x85 62x69x85 62x95x85
mm 1560x1268x2160 1560x1740x2160 1560x2409x2160


Model   D-4375M DD-4375M DDD-4375M
B-4375M DB-4375M DDB-4375M
Max working width in 42 42 42
mm 1070 1070 1070
Maximum working thickness in 5 5 5
mm 127 127 127
Sanding belt dimension (WxL) in 43x75 43x75 43x75
mm 1092x1905 1092x1905 1092x1905

Dust outlet

 in 7 7 7
mm 178 178 178
Main motor HP 20 20, 15 25, 20, 15
Feed motor HP 1 2 2
Table lifting motor HP 1/4 1/4 1/4
Variable feed speed m/min 5-15 5-15 5-15
Working pressure kg/cm2 6 6 7
Exhaust volume required m3/hr
Net weight lbs 4630 5842 7275
kgs 2100 2650 3300
Gross weight lbs 5181 6504 8047
kgs 2350 2950 3650
Machine size (LxWxH) in 61x59x78 61x78x78 61x89x78
mm 1560x1496x1960 1560x1968x1960 1560x2259x1960
Packing size in 67x50x85 67x69x85 67x95x85
mm 1710x1268x2160 1710x1740x2160 1710x2409x2160


Model   D-5275M DD-5275M DDD-5275M
B-5275M DB-5275M DDB-5275M
Max working width in 50 50 50
mm 1270 1270 1270
Maximum working thickness in 5 5 5
mm 127 127 127
Sanding belt dimension (WxL) in 52x75 52x75 52x75
mm 1321x1905 1321x1905 1321x1905

Dust outlet

 in 8 8x2 8x2
mm 200 200x3 200x3
Main motor HP 30 30, 25 30. 25. 20
Feed motor HP 1 2 2
Table lifting motor HP 1/4 1/4 1/4
Variable feed speed m/min 5-15 5-15 5-15
Working pressure kg/cm2 6 6 8
Exhaust volume required m3/hr 2872 5744 8616
Net weight lbs 4840 6820 8580
kgs 2200 3100 3900
Gross weight lbs 5500 7700 9680
kgs 2500 3500 4400
Machine size (LxWxH) in 80x82x79 90x84x81 113x85x81
mm 2032x2083x2007 2286x2135x2057 2870x2159x2057
Packing size in 89x84x89 97x87x89 116x90x89
mm 2240x2130x2250 2450x2210x2250 2940x2270x2250
